What is this guys?

[Medskipper]

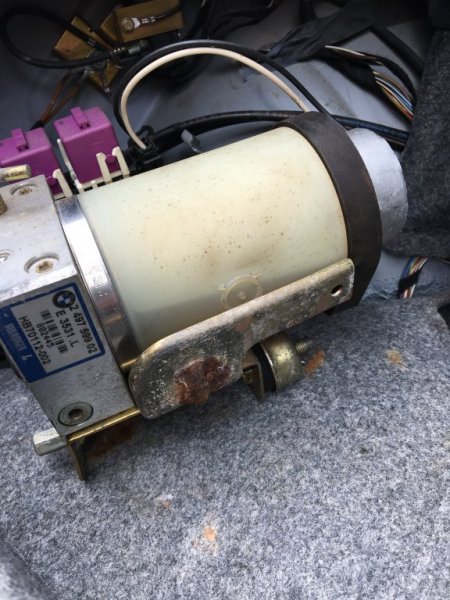

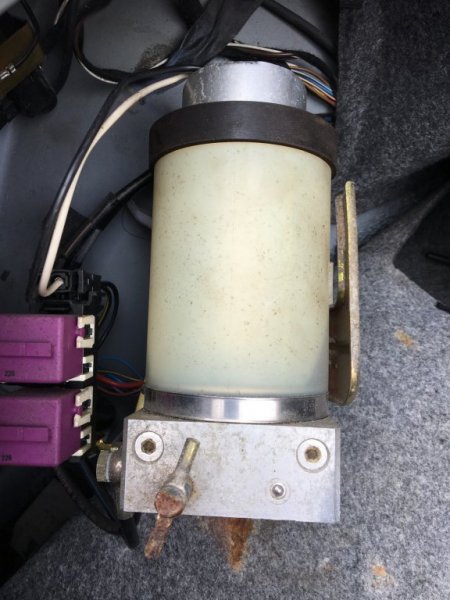

just changed the Ariel grommet on my 3M, I did the same job last year on my 1.9. But this wasn’t mounted in front of the Ariel, what is it? It has liquid in it and only about a third full so does it need filling and what with?
I know it’s an easy question for you guys!



[Bampz]

That's the pump for the power roof



[Medskipper]

That's the pump for the power roof

ah I thought it might be! Does anyone know the fluid you top it up with and how much should be in it?



[Bampz]

Not sure on which fluid to use but it's only about a1/4 to 1/3rd full , there may even be a mark on the plastic casing



[Medskipper]

Not sure on which fluid to use but it's only about a1/4 to 1/3rd full , there may even be a mark on the plastic casing

yes I thought that but can’t see any marks! I guess it’s just a hydraulic fluid?



[t-tony]

yes I thought that but can’t see any marks! I guess it’s just a hydraulic fluid?

Don't fill it until someone posts a picture of theirs otherwise it is easy to overfill and that will cause a mess. I can't help as mine's a Z4.

Tony.



[BinJuice]

yes I thought that but can’t see any marks! I guess it’s just a hydraulic fluid?

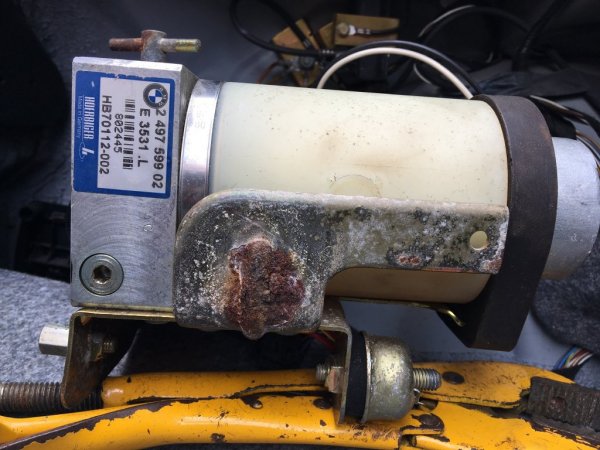

On your 1st photo you'll notice a round indentation on the plastic container that's the fill line when its installed.
From memory as replaced my aerial and grommet at weekend.

Keith



[t-tony]

Also, just so you know, the pump slots into 2 rubber bushes at the bottom (there are 2 "pegs" about 10mm x 13mm long) and then 1 nut to locate the assembly. If the nut is missing a standard 6 or 8 mm will do the job.

Tony.



[Medskipper]

On your 1st photo you'll notice a round indentation on the plastic container that's the fill line when its installed.
From memory as replaced my aerial and grommet at weekend.

Keith

thanks Keith, I don’t suppose you know what fluid to use?



[BinJuice]

thanks Keith, I don’t suppose you know what fluid to use?

Not sure what oil to use but here's a link to clarify level etc.

https://zroadster.org/threads/convertible-top-hydraulic-pump.9445/



[Stevo7682]

Not 100 % but most hydraulics of this type use CHF. ( Central Hydraulic Fluid) i will check out for you when i am at work tomorrow see if I can give you a definitive answer.

Stephen.



[colb]

OEM fluid from a dealer at a price when they are open again post Covid19 lockdown or try Halfords for Hydraulic Jack Oil, people use that as an alternative.
