Coil removal.

Z Victor 1

Formerly "Ontiken1"
Supporter
British Zeds
Joined
May 4, 2015
Points
194
Location
Little Eaton,Derbyshire.
Model of Z
E 89 Z4 S drive 23i

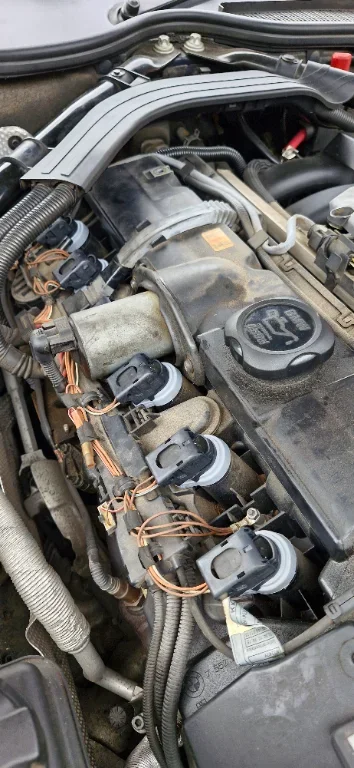

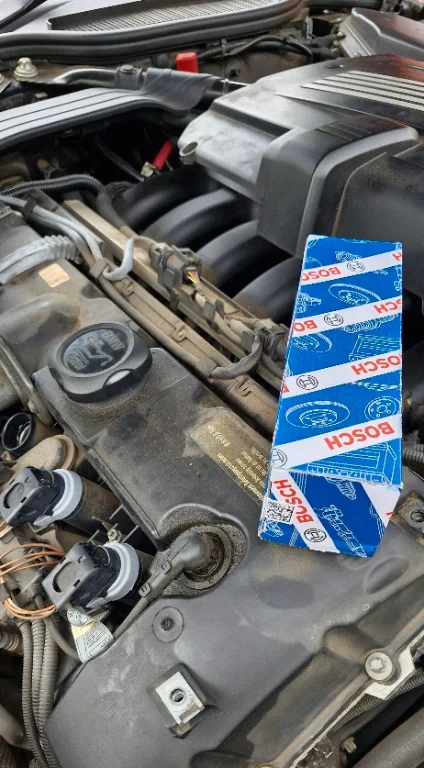

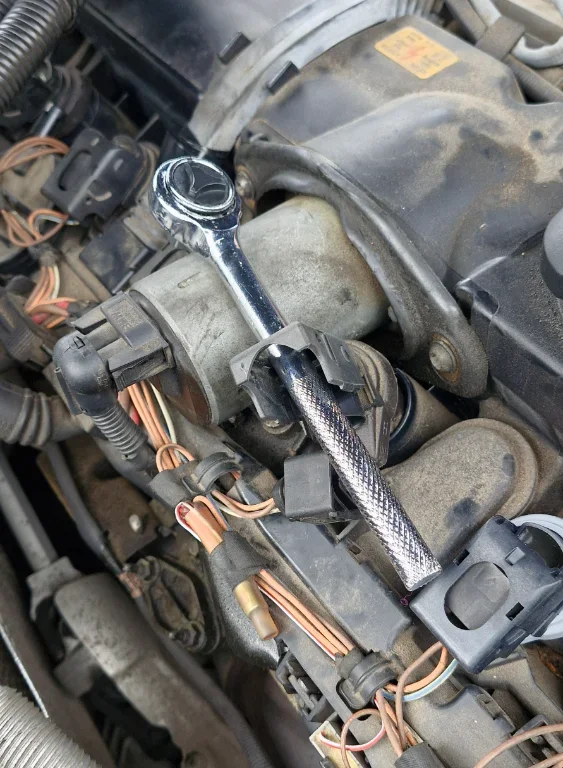

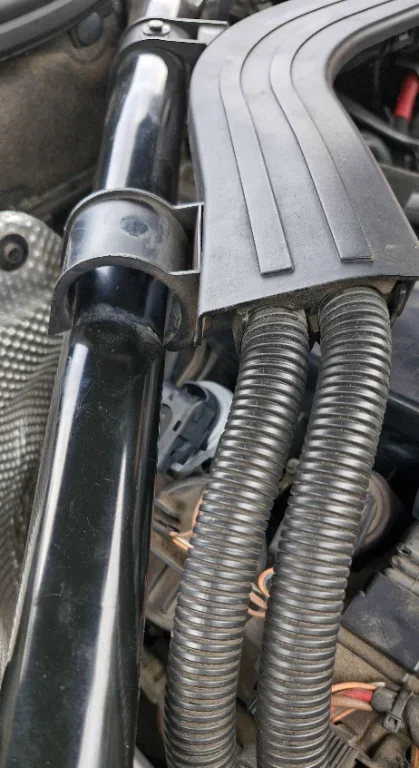

Had a problem getting the old coils out of my E89, but big thanks to @bombur who sent me a video from the 'tinternet! I was wary of pulling on the clips because I thought they might just snap off, but no. Just put a bar(I used a wrench from a small socket set) through the clip and pull. I unclipped the wiring from the strut bar to give better access to the back coil.


Attachments

  • 20260620_144605.webp
    75.4 KB · Views: 32
  • 20260620_144453.webp
    90.1 KB · Views: 34
  • 20260620_145017.webp
    56.8 KB · Views: 36
  • 20260620_145821.webp
    71.7 KB · Views: 34
Was this preventative maintenance Ken or did you have a problem?
